CAULKING VISCOMETER

Caulking Viscometer: CV-100

Perfect Instrument for Highly Viscous and Hard-to-Measure Materials!!

The CV-100 Caulking Viscometer is a compact but heavy-duty instrument that is ideal for highly viscous and hard-to-handle material on the production floor or in the QC lab.  Like all other SBS viscometers, the CV-100 combines economy, ease of operation, accuracy, reliability, and versatility.  High quality of instrument guarantees reliable performance for a long life. Small sample size and temperature control are also available.

The Caulking Viscometer consists of a support stand and a disposable sample tube filled with the liquid whose viscosity is to be determined. Viscosity of the sample is determined by measuring the falling time of a controlled needle through a predetermined distance of the fluid held in a sample tube. The falling time is measured automatically by means of Hall sensors and a magnet in the weight holder (CV-100), laser sensors (CVa-100) or manually (CVm-100). For Non-Newtonian fluid, a computer program is available from SBS.

Key Features

  • Disposable Sample (Caulking) Tube*
    (can be reused up to 30 times if cleaned)
  • High Viscosity Measurement (109cP)
  • No Sample Tube Cleaning
  • Measures Absolute Viscosity without Instrument Calibration
  • Minimal Disturbance of Sample's Mechanical Structure
  • Automatic Falling Time Measurements to 0.001 second
  • Accurate and Large Temperature Control
  • Quick and Easy Viscosity Measurement
  • Relative Sedimentation Rate Measurements
  • Microprocessor-based Console with RS-232 Interface for CV-100 Model





*Small 25ml syringe tube with an adapter is also available.

Applications:

Adhesives, Aerosols, Automobile Fluids, Biomaterials, Coal Slurries, Coatings, Colloids, Cosmetics, Creams, Dairy Products, Detergents, Dispersions, Emulsions, Fertilizers, Foams, Fuels, Gels, Grease, Honey, Inks, Ketchup, Latex, Lubricants, Mayonnaise, Milk, Oils, Ointments, Paints, Petroleum, Polymers, Proteins, Pulp, Resins, Shampoos, Slurries, Soaps, Solutions, Surfactants, Suspensions, Varnish and many more.

Models:

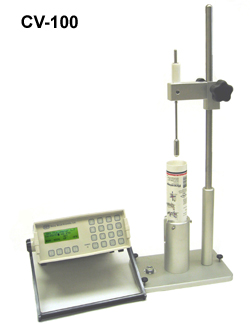

CV-100

Microprocessor-based Console with RS-232 Interface
Automatic Needle Falling Time Measurement
Room Temperature or Temperature Control with an Optional Water Jacket (-40 to 150C)*

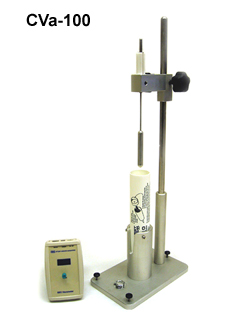

CVa-100
Automatic Needle Falling Time Measurement
Room Temperature or Temperature Control with an Optional Water Jacket (-40 to 150C)*
CVm-100 Manual Needle Falling Time Measurement
Room Temperature or Temperature Control with an Optional Water Jacket (-40 to 150C)*
* Outside this range, consult SBS.



Specifications: CV Model
Viscosity Range 100 to 109 cP (mPa s)* CV-100, CVa-100, CVm-100
Temperature Range Room Temperature or -40 to 150C with an Optional Water Jacket* CV-100, CVa-100, CVm-100
Accuracy & Repeatability Better than 2%

Better than 3%

CV-100, CVa-100

CVm-100

Test Sample Volume** 296 ml (10 oz): Caulking Tube 25 ml (0.84 oz): Syringe Tube CV-100, CVa-100, CVm-100
Needle Material Metal (Al, Ti, S.S.) CV-100, CVa-100, CVm-100
Needle Densities 6 to 300 g/cm3* CV-100, CVa-100, CVm-100
Total Instrument Weight 4.1 kg (9 lbs)

3.2 kg (7 lbs)

3.0 kg (6.5 lb)

CV-100

CVa-100

CVm-100

* Outside this range, consult SBS

** A custom sample container can be used with an optional sample container  adapter.
