Portable / Disposable Viscometer:
PDV-100
Automatic
Portable / Disposable Viscometer: PDVa-100
A
New Instrument for the Rapid and Accurate Determination of
the Viscous Properties of Newtonian and Non-Newtonian
Fluids
The
PDV-100 and PDVa-100 Portable/Disposable Viscometers are
revolutionary, portable, efficient, alternatives to larger
full-featured laboratory viscometers. The PDV-100
and PDVa-100 are simple to use, accurate, low-cost,
compact, and lightweight field viscometers that can be
taken anywhere to measure the viscosity of Newtonian and
non-Newtonian fluids. The PDV-100 and PDVa-100 combine
economy, ease of operation, accuracy, reliability, and
versatility. High quality of instrument guarantees
reliable performance for a long life. Small
sample size and temperature control can be accommodated.

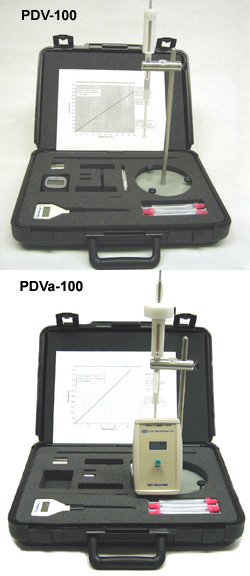

The PDV-100 and PDVa-100 Portable/Disposable Viscometers
consist of a
support stand and a disposable sample tube filled with the
liquid of which the viscosity is to be determined.
Viscosity of the sample can be determined by measuring the
falling time of a controlled needle through a
predetermined distance of the fluid held in the sample
tube. The falling time is measured automatically
(PDVa-100) or manually by a stopwatch (PDV-100).
 |
|
Key Features
- Disposable Sample
Tube (4.5ml)
(can
be reused up to 30 times)
- Measures Absolute
Viscosity without Instrument Calibration
- Field Viscosity
Test
- Inexpensive
Non-Newtonian Viscosity Measurements
- Quick and Easy
Viscosity Measurements
- Inexpensive
- Automatic Falling
Time Measurements to 0.001 second (PDVa-100)
|
|
|
Also
Available
Constant
Temperature Heating Block
for
Model DV-100, PDV-100 and PDVa-100
- A
constant Temperature Heating Block can hold 9
sample tubes and allows the samples to
achieve temperature equilibrium before
viscosity measurement
- It
will drastically reduce the measurement time
of multiple samples
|
|
Applications:
Adhesives, Aerosols,
Automobile Fluids, Biomaterials, Coal Slurries, Coatings,
Colloids, Cosmetics, Creams, Dairy Products, Detergents,
Dispersions, Emulsions, Fertilizers, Foams, Fuels, Gels,
Grease, Honey, Inks, Ketchup, Latex, Lubricants,
Mayonnaise, Milk, Oils, Ointments, Paints, Petroleum,
Polymers, Proteins, Pulp, Resins, Shampoos, Slurries,
Soaps, Solutions, Surfactants, Suspensions, Varnish and
many more.
| Models: |
| PDV-100 |
Manual Needle Falling
Time Measurement |
| at Room Temperature* |
 |
| PDVa-100 |
Automatic Needle Falling
Time Measurement |
| at Room Temperature* |
| * Outside
this range, consult SBS. |
|
| Specifications: |
PDV
Model |
| Viscosity
Range |
5 to
106 cP(mPa s)*
0.7 to 107 cP(mPa s)* |
PDV-100
PDVa-100 |
| Temperature
Range |
Room* |
PDV-100
& PDVa-100 |
| Accuracy
& Repeatability |
Better
than 3%
Better than 1% |
PDV-100
PDVa-100 |
| Test
Sample Volume |
Approx.
4.5cm3* |
PDV-100
& PDVa-100 |
| Needle
Material |
Metal
(Al, Ti, S.S.) |
PDV-100
& PDVa-100 |
| Needle
Densities |
6 to
130 g/cm3* |
PDV-100
& PDVa-100 |
| Total
Instrument Weight |
2 kg
(4.4 lbs) |
PDV-100
& PDVa-100 |
| *
Outside this range, consult SBS |
|
|
